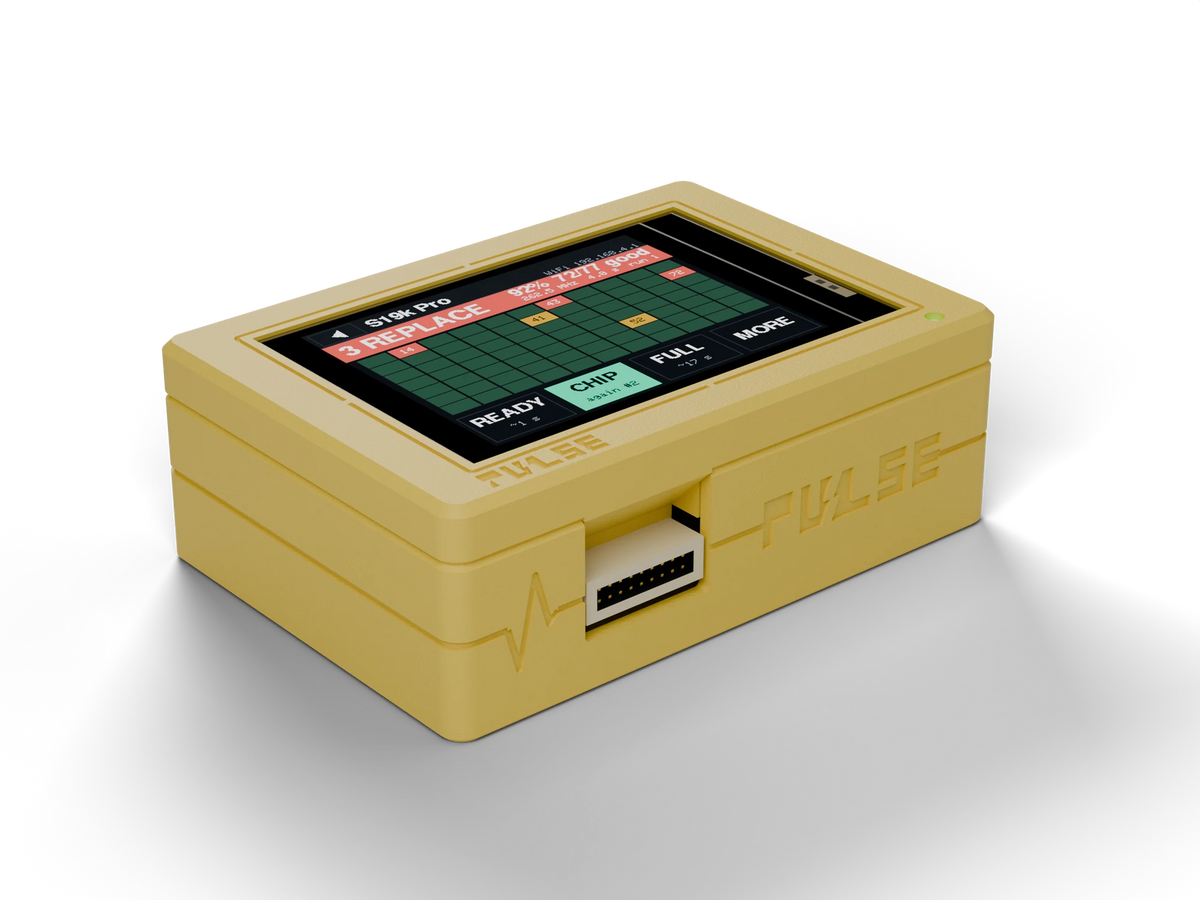

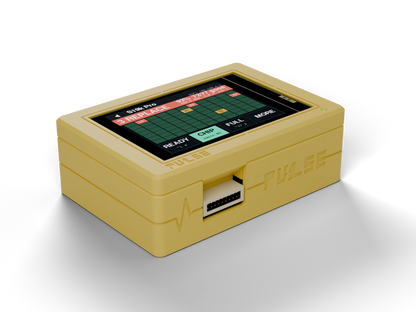

PULSE V1 Hashboard Tester
PULSE V1 Hashboard Tester
Inclusive of all taxes · + ₹300 shipping
In stock, ships in 1-2 working days
ORDERING OPENS SOON
Online ordering is not open yet. Questions or early orders: use the button below.
Outside India? Contact us to order.
PULSE V1 works only with Bitmain Antminer hashboards that use the 18-pin connector. Other brands are not supported.
PULSE V1 is a hashboard tester for Bitmain Antminer hashboards with the 18-pin connector. Other brands are not supported. Plug in the hashboard and your bench PSU. PULSE V1 finds the bad ASIC chips and shows you, by number, which ones to replace.

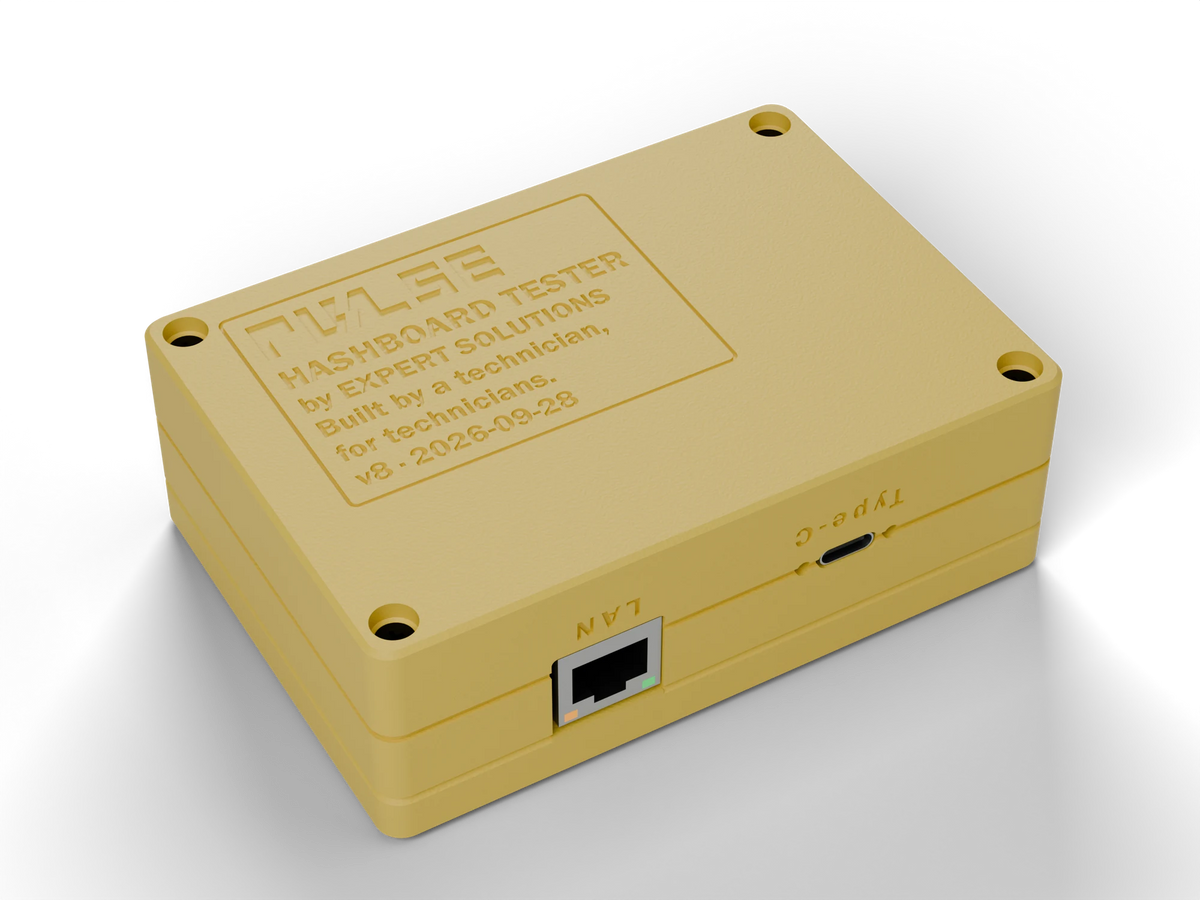

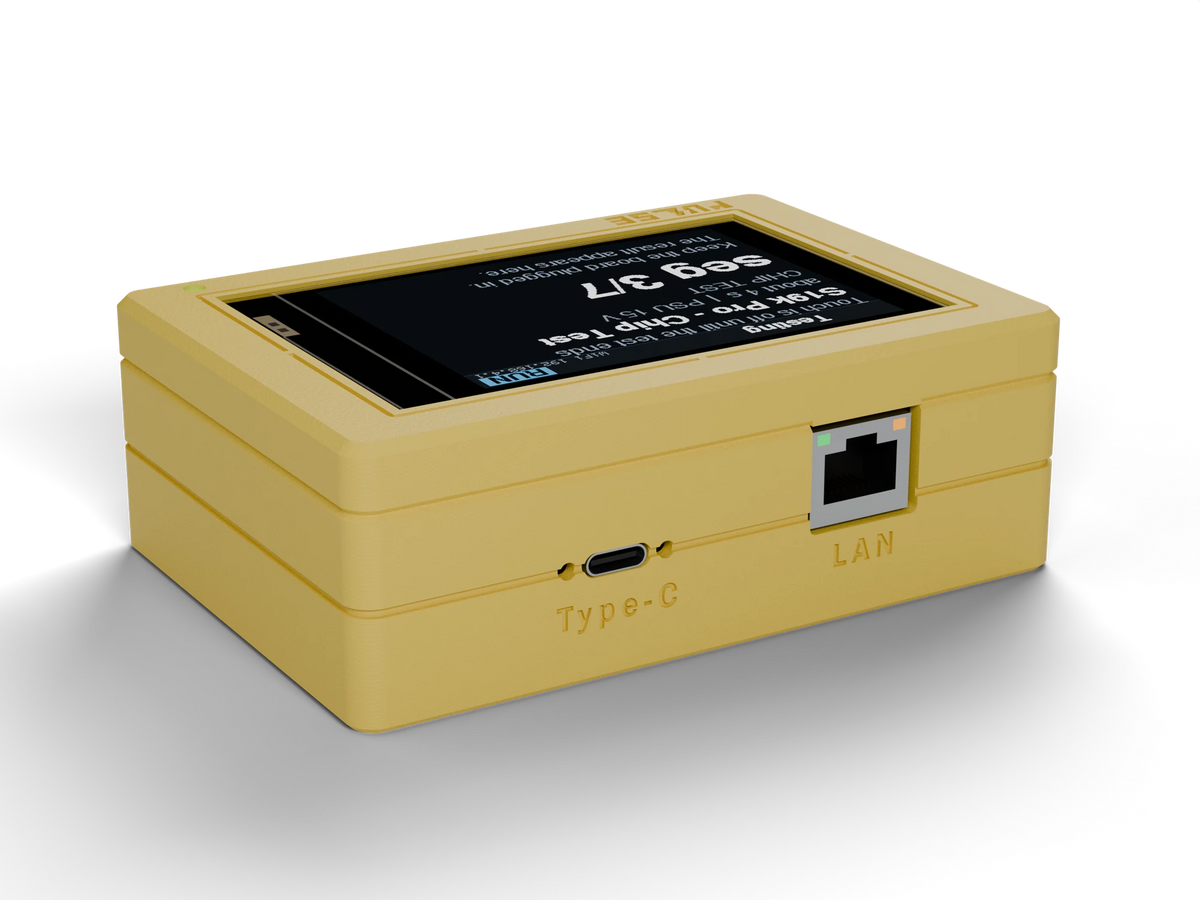

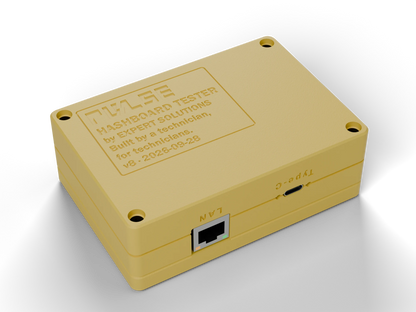

Use it through its web UI, which has more test features. Open the web UI in a browser on any phone, tablet or computer, over PULSE's own WiFi hotspot or its Ethernet port. Or use it on its own 3.5 inch touch screen.
Full tests with a chip map for S19k Pro, S19 (88), S19 XP+ Hydro and S21 Hydro. Chip count for S19 (126), S19j Pro, S19 Pro+, S21, S21+ and S21 Pro. New boards come in firmware updates.
Four case colours: Blue, Gray, Yellow and Red. Sold by Expert Solutions, India.
Key features
Key features
- Web UI with more test features: open it in a browser on any phone, tablet or computer, over PULSE's own WiFi hotspot or its Ethernet port
- Also works on its own touch screen

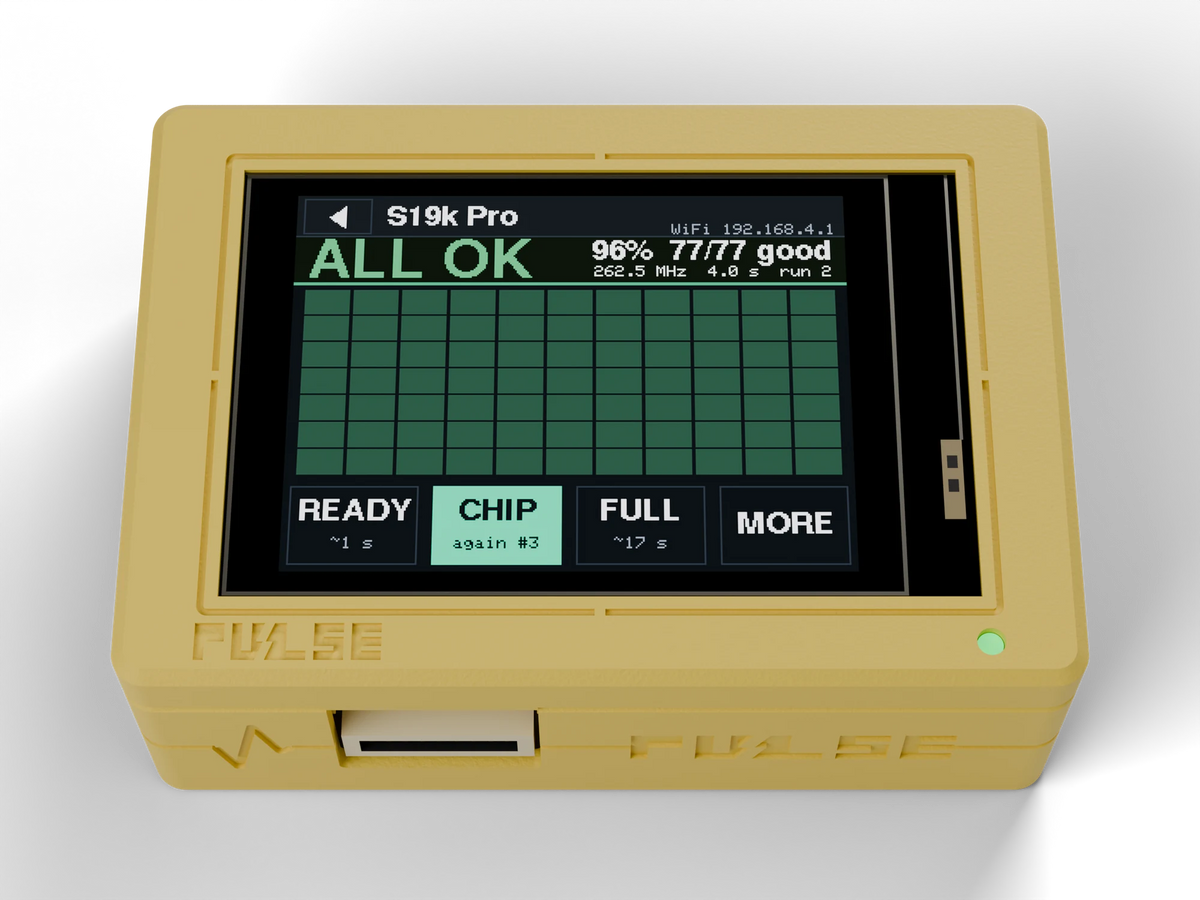

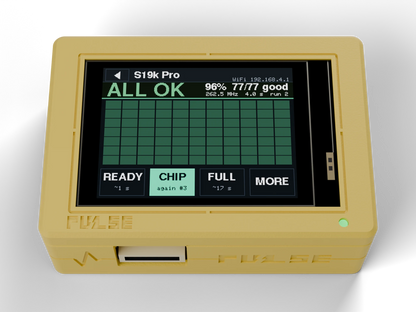

- Chip map: every chip graded pass, weak or fail, with the chips to replace
- Hash test at the frequencies you choose, with results in seconds
- EEPROM editing
- Temperature-sensor circuit repair mode
- Separate checks of the temperature sensors and the EEPROM address lines, to make repairs easier
- Count test for S19j Pro, S21 and more
- Hydro boards: temperature map and thermal soak
- Reads the board's EEPROM to identify it
- Says INCONCLUSIVE instead of guessing
- Online firmware upgrade from the browser
- Highly customizable, with advanced test modes for Bitmain hashboards
Supported boards
Supported boards
PULSE V1 works only with Bitmain Antminer hashboards that use the 18-pin connector. Other brands are not supported.
Full tests with chip map: S19k Pro (77 chips), S19 (88) (88 chips), S19 XP+ Hydro (180 chips), S21 Hydro (216 chips).
Chip count: S19 (126), S19j Pro, S19 Pro+, S21, S21+, S21 Pro.
Not listed? Ask us on WhatsApp.
In the box
In the box
- PULSE V1 hashboard tester
- Power cable
- Long, high-quality 18-pin cable for the hashboard
Warranty
Warranty
1-year warranty from the delivery date. If your PULSE has a fault, we repair or replace it.
Shipping & returns
Shipping & returns
Shipping: ₹300 per order, added at checkout. In-stock colours ship in 1-2 working days; pre-orders ship in the time shown above.
No returns if you change your mind. Faults are covered by the 1-year warranty, and your rights under Indian consumer law still apply. If your parcel arrives damaged, contact us right away with photos. See our Refund policy.

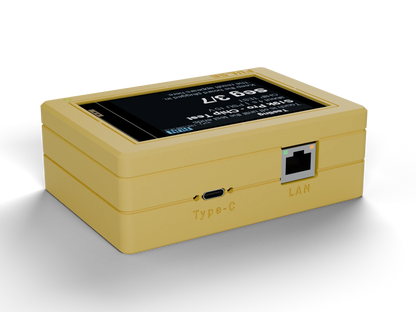

Four case colours
Same tester inside. Tap a colour to see it in front.
